1-215079-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-215079-0
Datasheet:
Description:

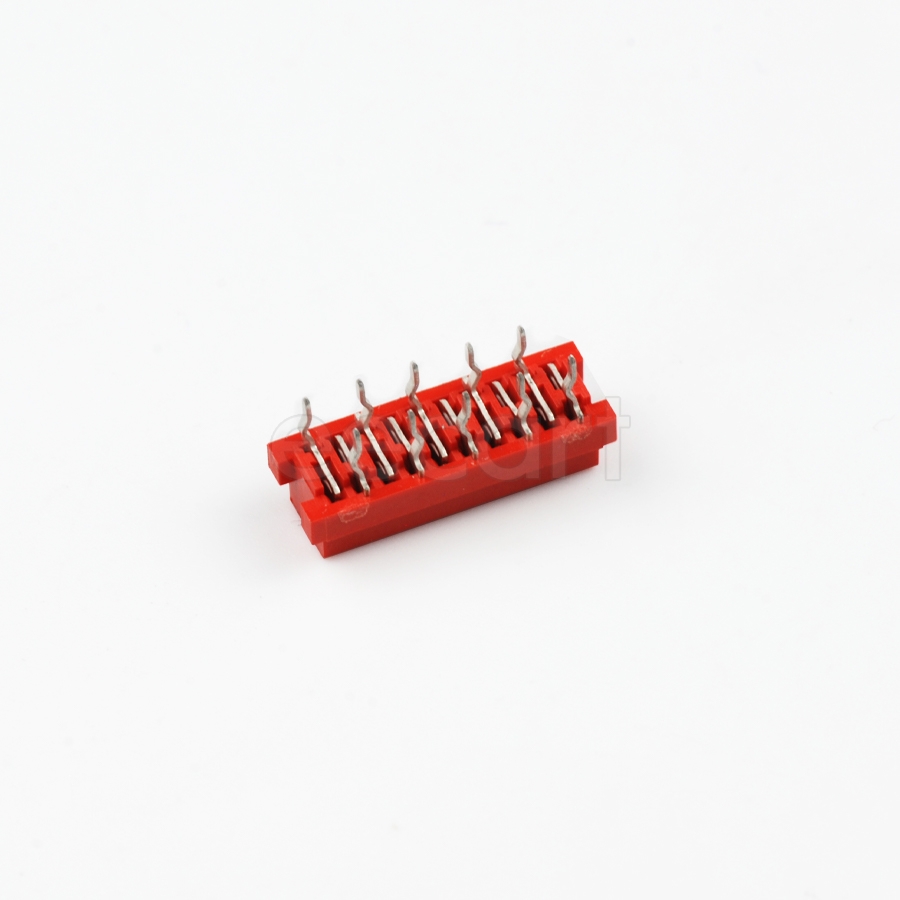

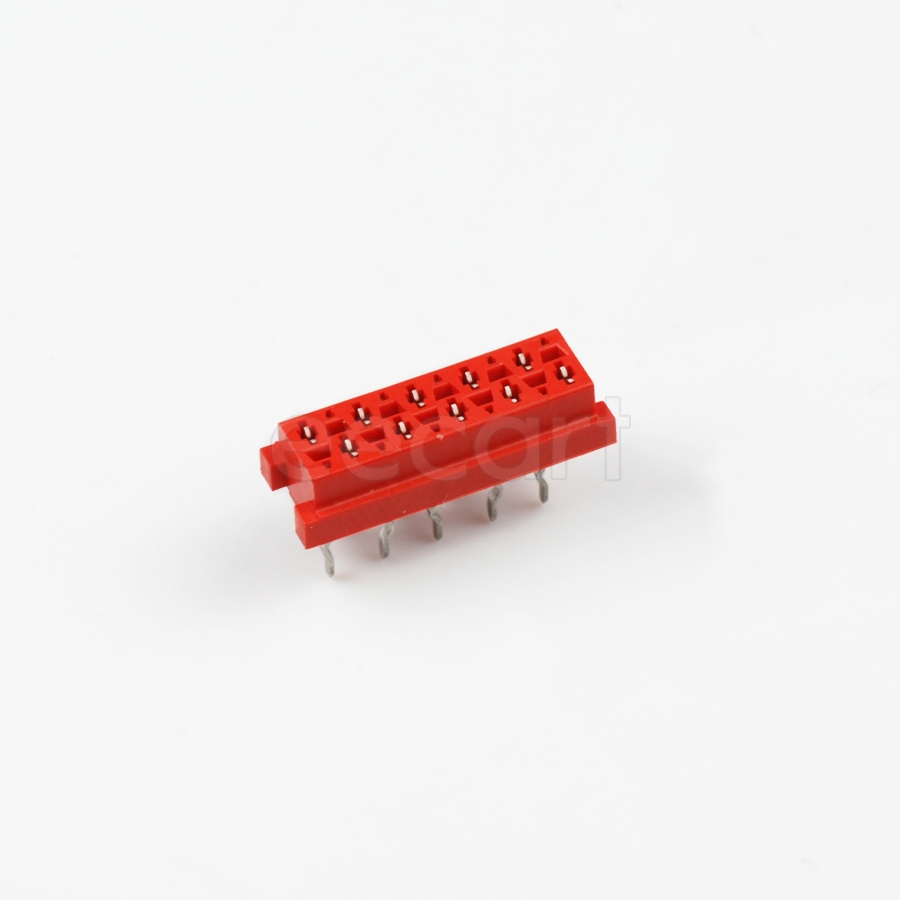

FFC / FPC Through Hole Number of Positions:10 1.5 A 230 V
| Parameter | Value |
|---|---|
| Length | 14.7 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 4.064 mm |
| Packaging | Reel |
| Voltage Rating | 230 V |
| Depth | 5.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.0988 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Flammability Rating | UL94V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Red |
| Gender | Receptacle |
| Number of Contacts | 10 |
| Connector Type | Connector, Pin, Receptacle |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Contact Current Rating | 1.5 A |
| Housing Color | Red |
| PCB Mounting Orientation | Vertical |
| Plating Thickness | 5 nm |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
Stock: 109
Distributors
pcbx
pcbxUnit Price$0.75034
Ext.Price$0.75034
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.75034 | $0.75034 |
| 10 | $0.60403 | $6.04030 |
| 25 | $0.55260 | $13.81500 |
| 50 | $0.50555 | $25.27750 |
| 100 | $0.46250 | $46.25000 |
| 300 | $0.43998 | $131.99400 |
| 500 | $0.41856 | $209.28000 |
| 1000 | $0.39518 | $395.18000 |
